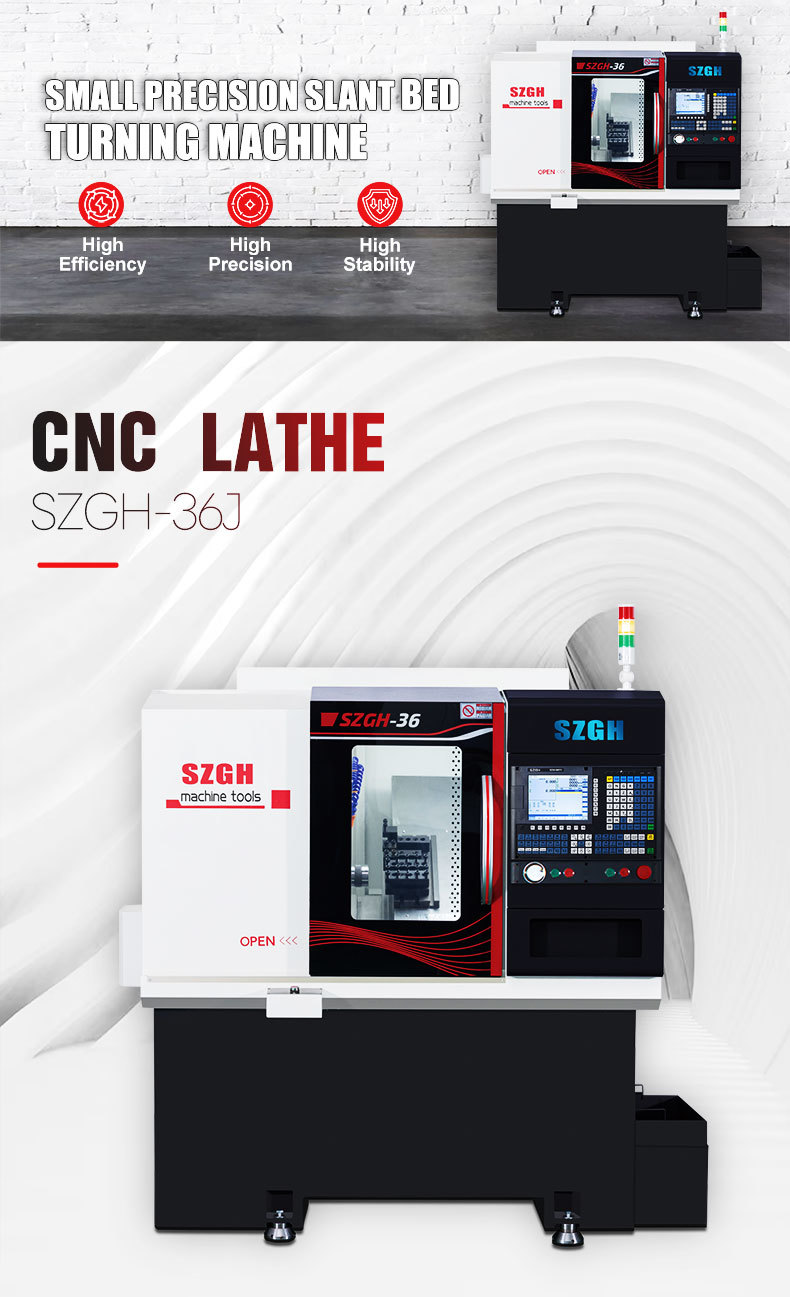

Standard 2 axis lathe machine SZGH-36J with X axis 600mm Z axis 230mm

Standard configuration of 2 axis lathe machine SZGH-36J 1.X axis:600MM;Z axis:230MM; 2.SZGH 110 motor 1.2KW, X axis with brake, Z axis without brake; 3.SZGH 2 axis CNC lathe controller system; 4.Standard type screw and guide rail, bearing; 5.3.7KW spindle servo motor ;

Service Hotline

86 19928711953(Whatsapp & WeChat)

Video Center

Classification:

CNC lathe machine

Product Description

SZGH-36J is 2 axis lathe controller which is used in hard rail CNC lathes, replaced by 46 large CNC lathes with small parts, etc., to achieve the effect of improving efficiency and cost-benefit ratio.

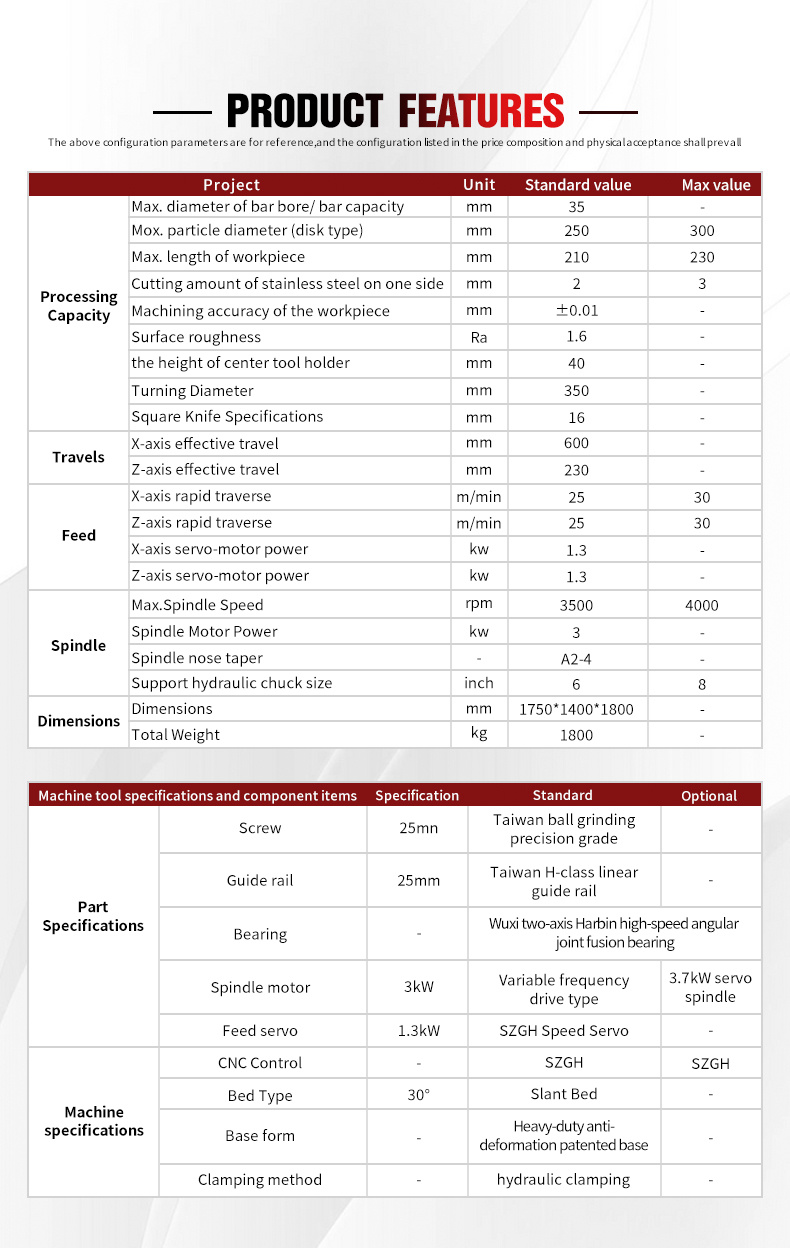

Standard configuration of SZGH-36J

1.X axis:600MM;Z axis:230MM;
2.SZGH 110 motor 1.2KW, X axis with brake, Z axis without brake;

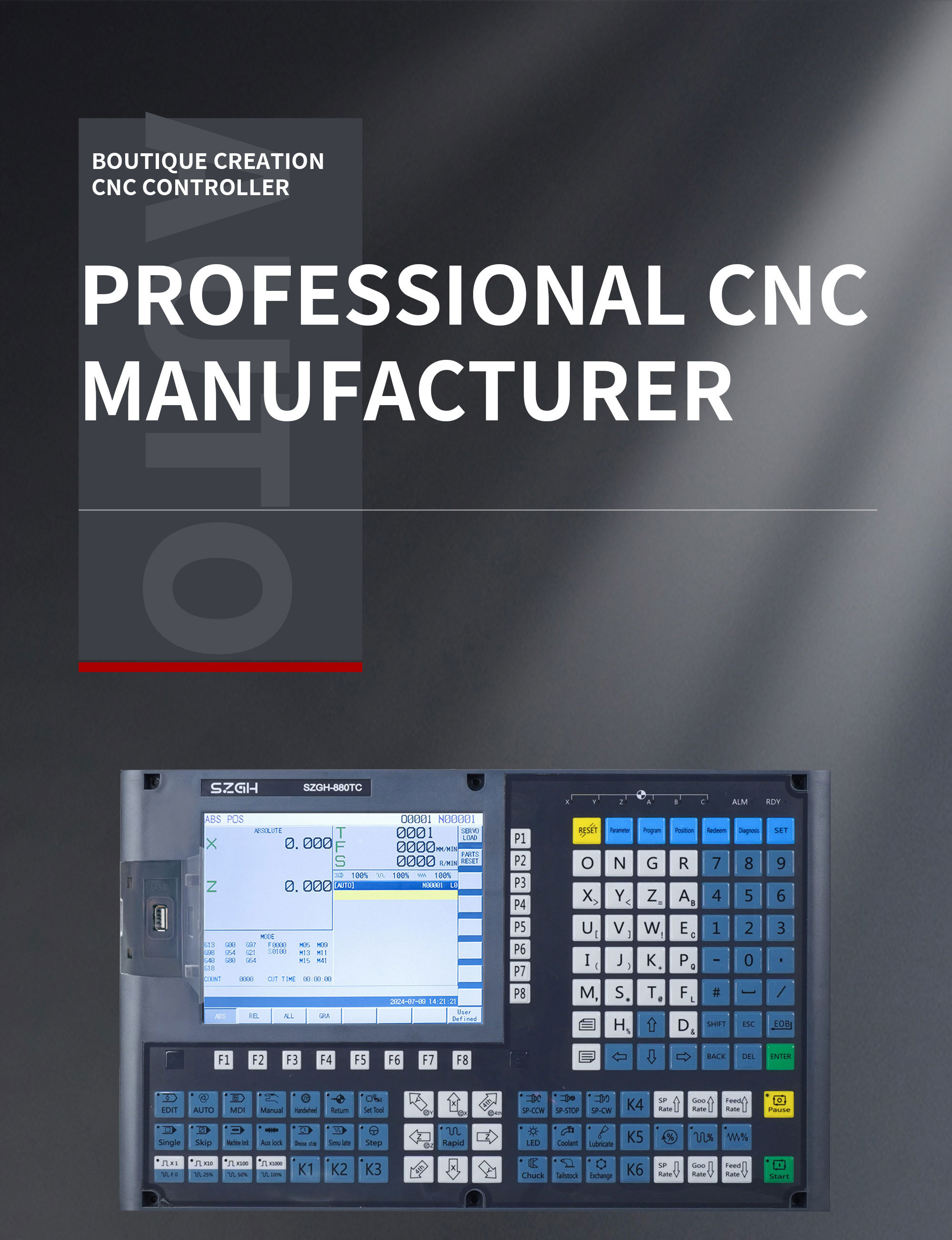

3.SZGH 2 axis CNC lathe controller system;
4.Standard type screw and guide rail, bearing;
5.3.7KW spindle servo motor ;

Product Description:
1.It is suitable for batch production of copper, iron, aluminum and stainless steel bars within 35mm, and batch production of open-type forged parts with automatic feeding of pellets within 50mm.

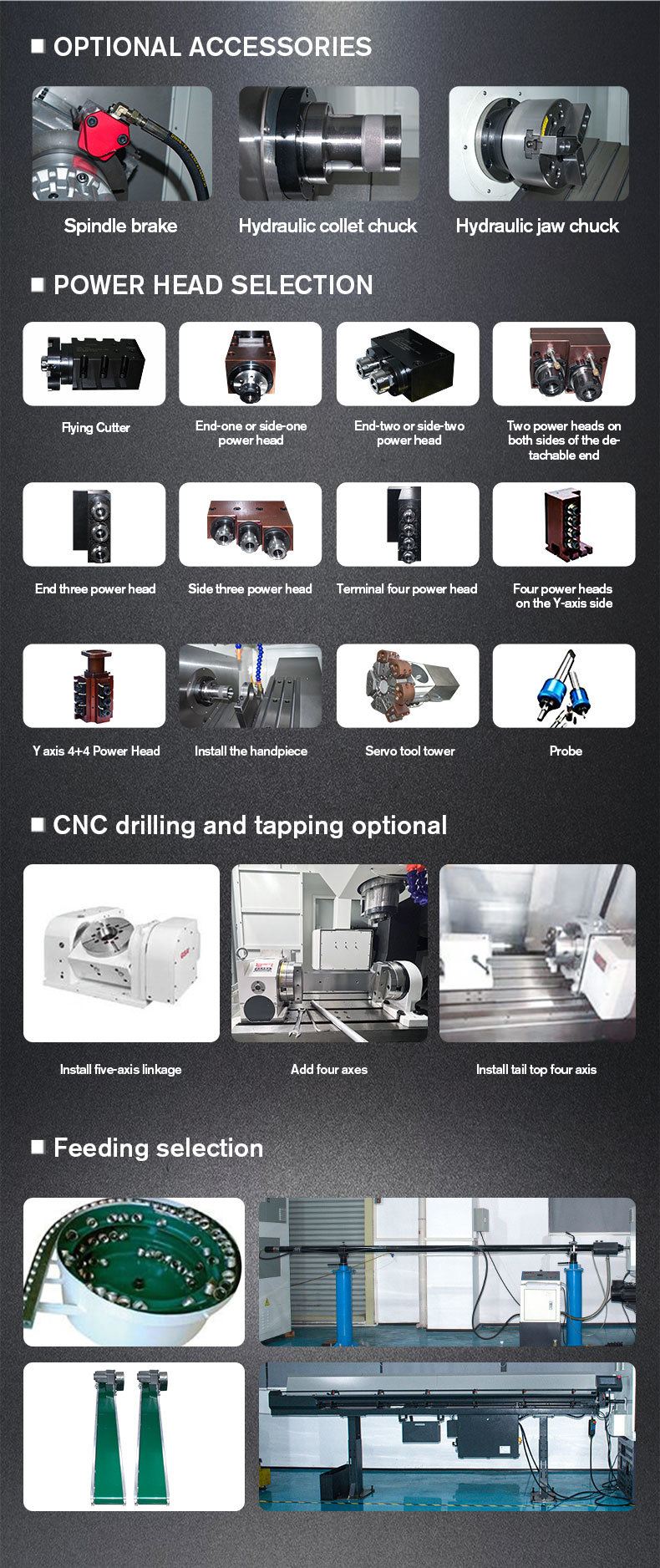

2.It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.

3.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 2mm, precision tolerance within ±0.01mm, and smoothness within 1.6.

Product Features

1.Using Anti-deformation patented heavy-duty base, it is heavy enough to support fast the high-speed and stable movement of the driving head.

2.The weight is enough to support the anti-vibration and improve the accuracy and smoothness during bar machining.

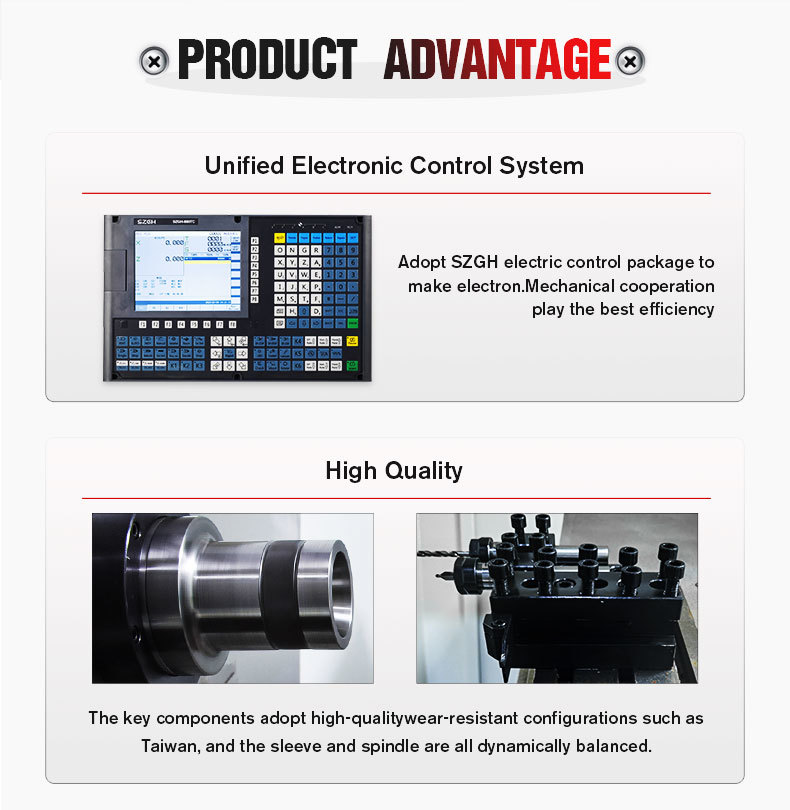

3.The key components adopt high-quality wear-resistant configurations such as Taiwan, and the spindle installation is all dynamically balanced.

4.Adopting SZGH electric control package to make electromechanical cooperation play the best efficiency.
