2 Axis 3Axis High Precision High Rigidity Automated Machining CNC Lathes Turning Machinery Part Processing Lathe Machine Center
Product highlights: 30° inclined bed 2 axis small CNC lathe turning machine; X/Z effective travel: 600*230MM; Maximum bar hole diameter: 35MM, maximumlength of workpiece: 210MM; Adopt SZGH-880TC CNC lathe system,achieve the best efficiency of electromechanical synergy; Taiwan 25 ball grinding precision screw; Heavy duty anti-deformation patented machine base，with excellent shock absorption and stability;
Classification:
Product Description
High Precision High Rigidity Automated Machining 2 Axis 3Axis CNC Lathes Turning Machinery Part Processing Lathe Machine Center
CNC lathe machine is an automated processing equipment that controls the movement and processing of machine tools through controller programs. This model 2 axis machine tool SZGH-36J can complete a variety of processing procedures such as turning : external circle, internal hole, end face, taper etc. It can be widely used in machinery manufacturing, automobile, aerospace, electronics, medical equipment and other industries.
Technical Parameter
It is suitable for batch production of copper, iron, aluminum and stainless steel bars within 35mm, and automatic feeding batch production of forged parts and other granular materials within 50mm. It adopts a number of patented technologies such as high rigidity and anti-deformation structure, and is suitable for processing products with a single-side cutting amount within 2mm, a precision tolerance within ±0.01mm, and a finish of 1.6. It is widely used in the upgrading of hard rail CNC lathes, cam automatic lathes and hydraulic lathes to achieve automated production to save labor costs and improve product quality.
Product Features
This CNC 2-Axis inclined bed lathe series combines proven machine design with advance technology in lathe control and manufacturing. Reliability and stability make these a favorite among demanding job shops and in-house productions alike. Adopt SZGH-880TC CNC system to make the electromechanical synergy play the efficiency;

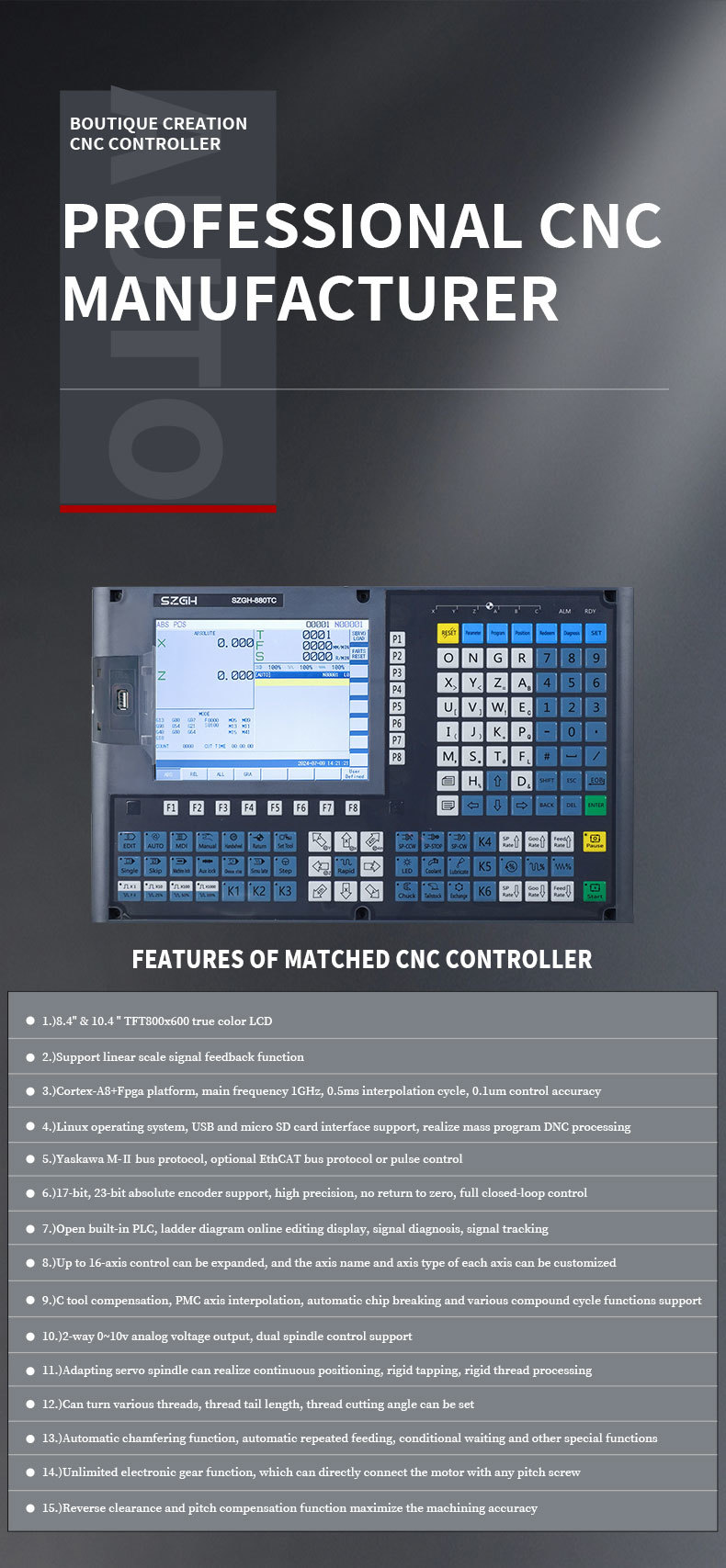

CNC System Features
1） 800x600 true color LCD, Chinese、English、Russia language display support;
2) Support grating ruler signal feedback function；
3) Cortex-A8+Fpga platform, main frequency 1GHz, 0.5ms interpolation cycle, 0.1um control accuracy；
4) Linux operating system, USB and micro SD card interface support, realize mass program DNC processing；
5) Yaskawa M-Ⅱ bus protocol, optional EthCAT bus protocol or pulse control；
6) 17-bit, 23-bit absolute encoder support, high precision, no return to zero, full closed-loop control；
7) Open built-in PLC, ladder diagram online editing display, signal diagnosis, signal tracking；
8) Real-time graphic display of machining tool trajectory, full diagnosis, alarm interface, real-time monitoring；
9) Class B macro instruction programming, macro program call with parameters support；
10) Adapting servo spindle can realize continuous positioning, rigid tapping, rigid thread processing；
11) Can turn various threads, thread tail length, thread cutting angle can be set；
Uniformly adopts independent brand systems and machine tools, which are easy to operate;
Optional Accessories
Disk brake device;Hydraulic Chuck:5 inch/6 inch;Flying cutter；
End one or side one power head/end two or side two power head;Four power heads on the Y axis side;
Install the handpiece;Oil bath feeder/Fully automatic feeding;
When you receive our CNC machines, you will get following service:
1)We have four areas: production area, assembly area, testing area, and finished product area. The machines will be strictly tested and the inspection reports will be sent to customers before they are shipped;
2)The entire machine including the system is of our own brand, and our hardware and software are all independently developed. Upgrading, learning and operation are simple, and the service is fast;
3)We will give you training video and give details information to help you operate step by step;
4)We will build a after-service group in what-app or by-email , and solve your any question or problem ;
5)All of product information such as : display, user manual , software are in English.It is very convenient for your application;
6)24-months warranty time;
7) Free replacement of accessories during the guarantee period if not man-made damage;
8)Online one to one service, so please don’t worry anything. Specially we export to lots of Countries with lots of quantities machines,have rich export experience;
9)Per your demand , we also can arrange local service to you.
