30KW AC servo spindle motor

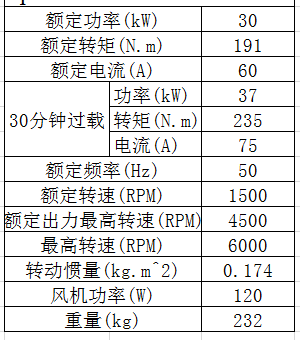

Overview: SZGH16-1-191-30 -4-1500: AC servo spindle motor rated torque is 191NM, rated power is 30 kW, matching driver SZGH-S4T030.

Classification:

Product Description

▶Features:

Positive and negative rotation: speed error/-1rpm,3000RPM acceleration and deceleration for 1 second.

Independent quasi-stop: high-precision (0.03) positioning, convenient robot up and down the workpiece.

Rigid Tapping: Up to 3000RPM Rigid Tapping, Minimum Power Tooth M3.

C- axis function: indexing accuracy can reach/-1pulse, turning and milling can be as low as 0.01rpm.

Low speed heavy cutting: instant 3 times overload, ensure the stability of cutting speed, suitable for casting processing.

High-speed precision machining: constant power output above 4000RPM, stable speed, to ensure smooth finish.

Strong applicability: It can be used with many upper computer (CNC system, PLC, etc.) at home and abroad.

Powerful secondary development: Special functions can be customized according to customer requirements.
