SZGH-CNC990MDb-4 4 Axis Milling CNC Controller

Overview: SZGH-CNC990MDb-4 is universal & economical type four axis milling CNC controller and control X,Y,Z,A four axes,two anglog spindles,2ms interpolation in high speed,1um precision,which obviously improve the efficiency ,precision and surface quality of processing parts. New USB interface,it supports the file operation and program running in flash disk.It provides many cycle commands of rigid tapping ,drilling ,boring,milling .etc.It supports Macro

Service Hotline

86 19928711953(Whatsapp & WeChat)

Video Center

Classification:

Drilling and milling machine CNC controller

Product Description

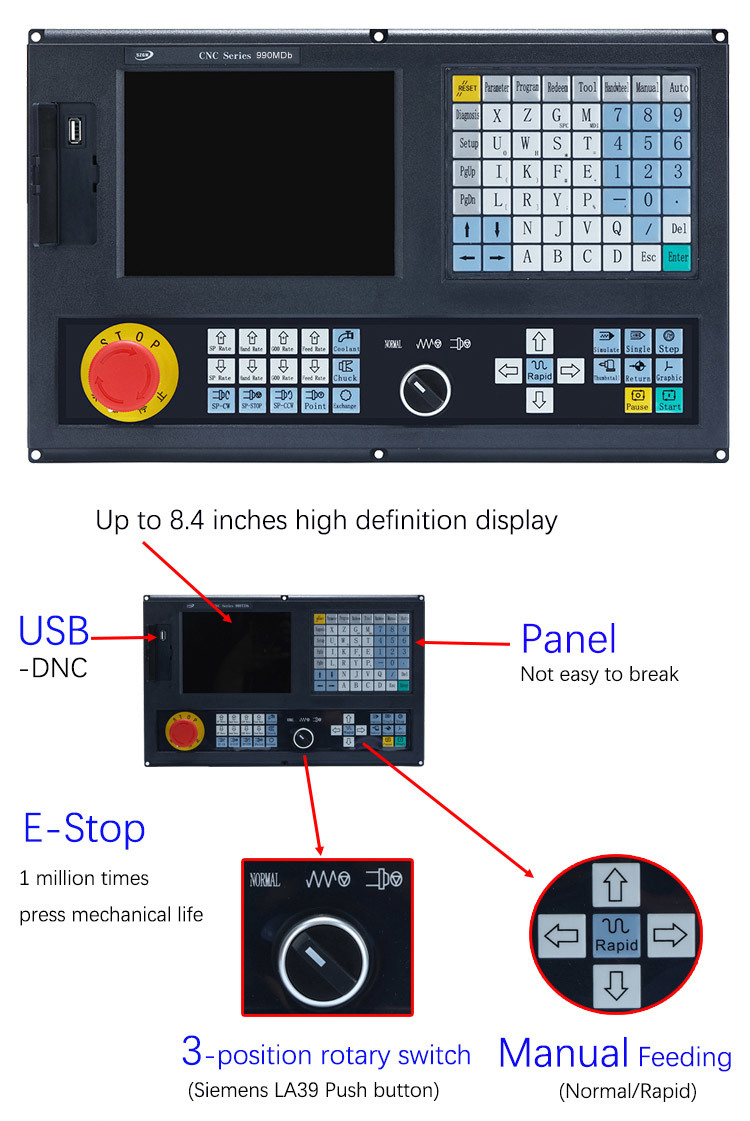

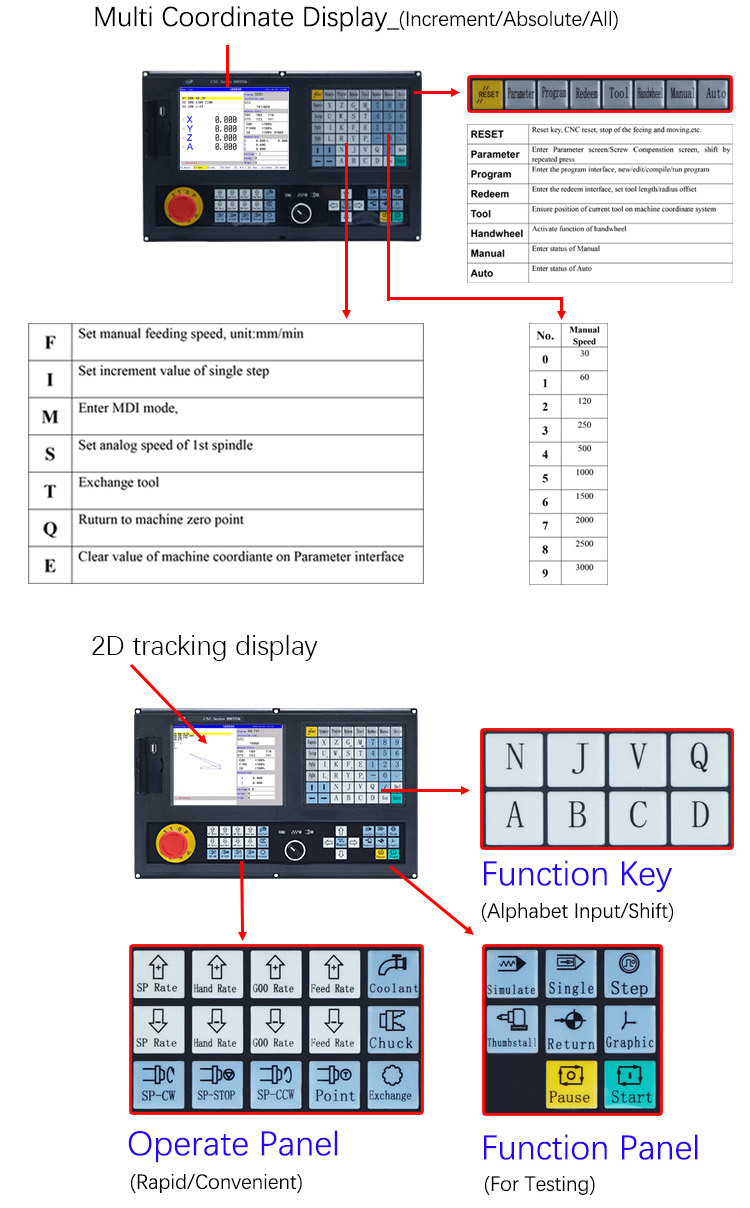

▶ProductDetails---MainPanel

▶ Features:

Support ATC function!!(Linear Tool &Bamboo/umbrella Magazine)!

1) The three axes of X,Y,Z control,any three axes linkage movement.

2) 2ms interpolation cycle,1um precision.

3) 5Hz Pulse Output Frequency,Maximum speed: 300m/min,Feeding speed: 150m/min

4) Multiple function,it can realize the drilling/boring,roughing of roun groove/rectangle groove,finishing of full circle/rectangle,continous drilling of straight line/rectangle/arc etc.

5) Built-in standard PLC program,and can be customized edited according to customer's askes.

6) Memory Capacity: 128MB,User Store Room: 100MB.

7) 8.4 inches(800*600) real colour LCD displayer.

8) Support Metric system/Inch System,with function of auto charfering.

9) Display in Chinese and English,which can be selected by paramter.

10) With USB interface,support USB file processing,software upgrade.

11) DNC in high speed,realize part program real-time transmission processing.

12) Analog voltage output of 0V~10V in two channels,support two-spindle control.

13) Support external MPG.

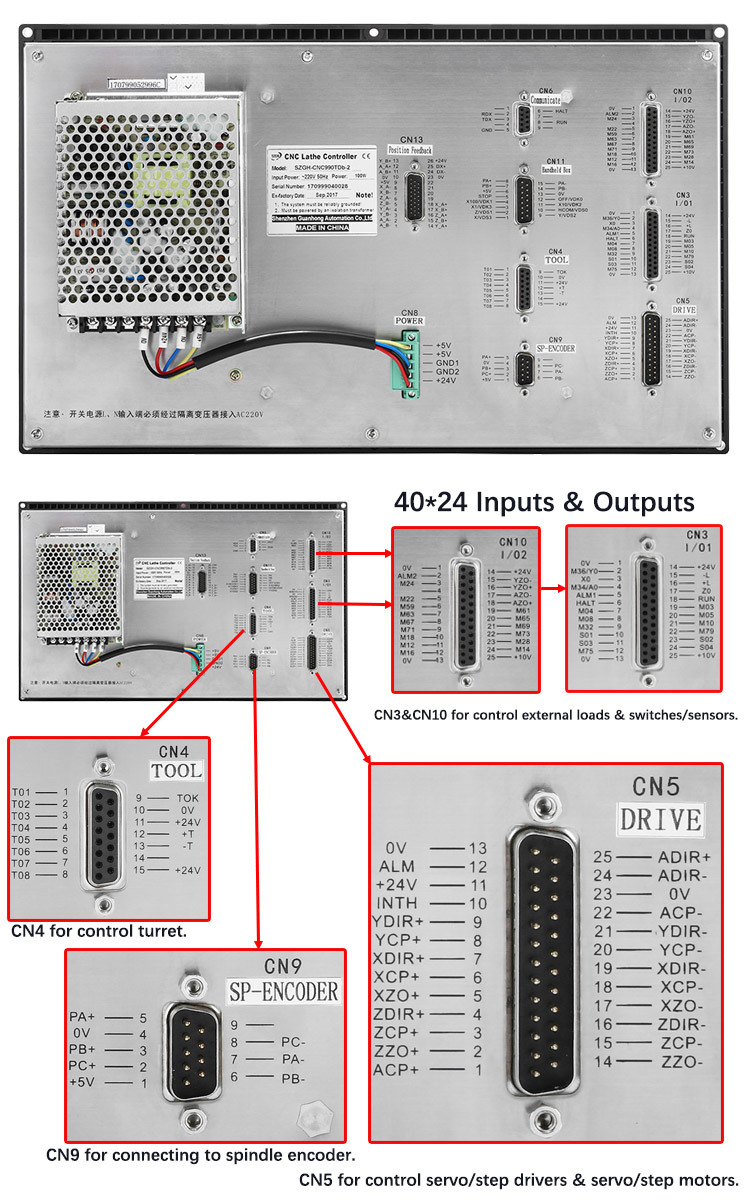

14) Basic I/Os: 40*24, 24*24 can be edited freely.

▶ Application:

CNC milling machinery; CNC drilling machinery; CNC boring machinery;Machine Center
