SZGH-S4T2P2 2.2KW AC spindle servo driver

Overview: SZGH-S4T2P2, AC spindle servo driver, rated input voltage: 3-phase 380VAC, rated output current: 5A, rated output capacity: 3.8KVA, matching 2.2kW AC spindle servo motor (SZGH08-4-14-2.2/3.7-4-1500).

Service Hotline

86 19928711953(Whatsapp & WeChat)

Video Center

Classification:

Spindle servo driver

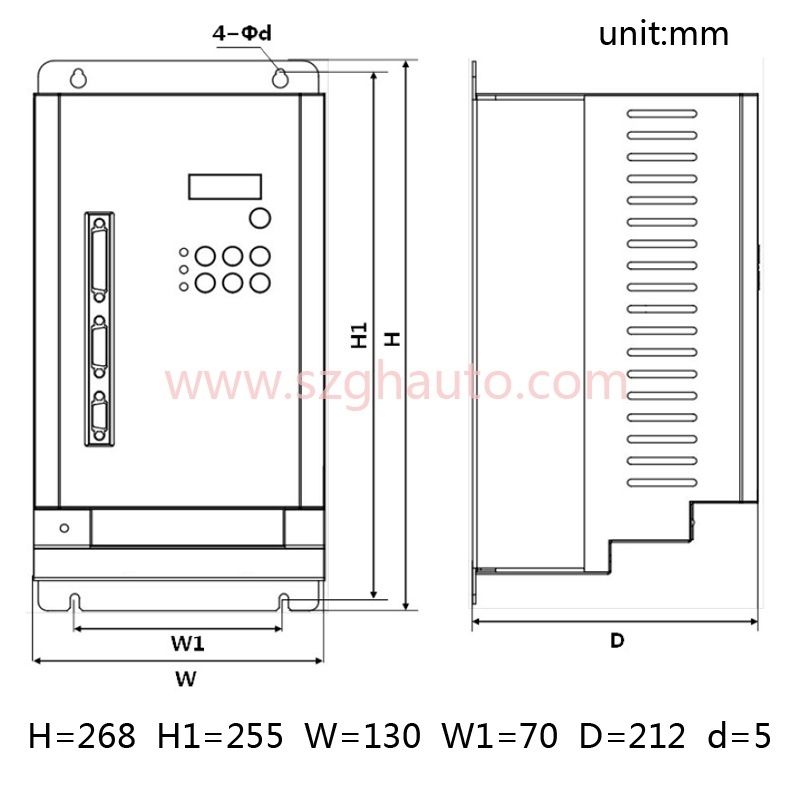

Product Description

▶Features:

High performance

Comprehensive control functions: stable speed control, precise position control, excellent torque control.

Safe and reliable

Products in line with international standards, through CE certification improvement. Set up multiple protection circuits to fully protect safety equipment.

Remote communication function (optional)

The product can be configured with remote communication function, and the mobile phone can be remotely controlled by connecting the SIM card module.

Powerful scalability (optional)

The spindle driver can be configured with a variety of expansion modules, such as digital terminal expansion module, analog terminal expansion module, encoder feedback divider output, RS485 ModBus RTU,CANopen,GSM / GPRS module, digital display module, dual position loop module interface.

And it can also be customized according to the user's specific application, and can be easily connected to CNC controller, HMI,PLC and other control equipment.

▶Application:

Input power	Rated voltage/frequency	Three-phase 380V / 480V; 50Hz / 60Hz
	Allowable voltage range	+10%~-15%
	Permissible Frequency Fluctuation	± 5%
Control functions/p>	Control mode	PWM vector control
	Speed adjustment range	0.01~500Hz
	speed stability accuracy	± 0.1%
	Acceleration/Deceleration Time	0.05~3000Hz/s
	Torque control	200% rated torque output; torque accuracy ± 5%
	Position control accuracy	±1 Pulse
	Braking mode	dynamic braking
	Overload capacity	double overload
I/Os	Digital input/p>	10 points, NPN or PNP (optional)
	Digital output	6 points, NPN
	Relay output	2, DC30V / 1A or AC250V / 1A
	Analog Input	2 inputs, A0:±10V; A1: 0~±10V Or 4~20mA(Optional)
	External pulse input	1 type, ABZ phase pulse, pulse direction or CW (optional)
	Motor Encoder Input	Type 1, RS422 TTL, rotary connector (optional)
	Motor Encoder Output	1, RS42TTL, output frequency range: 0~1MHz
Protection function	Overvoltage protection, low voltage protection, overcurrent protection, overheat protection, module protection, overload protection, output short circuit protection, encoder abnormal protection
Working environment	Business premises	The product should be installed vertically in the electric control cabinet with good ventilation. The product should be installed in an environment free of direct sunlight, dust, corrosive gas, combustible gas, oil mist, steam and dripping water
	Ambient temperature	-10 ℃ ~ 45 ℃
	Humidity	5 ~ 90%, no condensation allowed
	Height	0~3000 meters, derating more than 1000m, every increase of 100m, rated output current should be reduced by 1%
	Vibration	Below 20Hz: 1G; 20~50Hz:0.2G
