132KW AC servo spindle motor

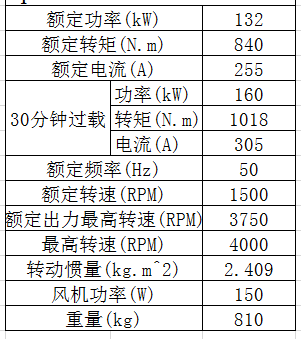

Overview: SZGH22-1-840-132/160-4-1500 AC servo spindle motor with rated torque of 840 nm and rated power of 132 kW, matched driver SZGH-S4T132.
Classification:
Product Description
▶Features:
Positive and negative rotation: speed error/-1rpm,3000RPM acceleration and deceleration for 1 second.
Independent quasi-stop: high-precision (0.03) positioning, convenient robot up and down the workpiece.
Rigid Tapping: Up to 3000RPM Rigid Tapping, Minimum Power Tooth M3.
C- axis function: indexing accuracy can reach/-1pulse, turning and milling can be as low as 0.01rpm.
Low speed heavy cutting: instant 3 times overload, ensure the stability of cutting speed, suitable for casting processing.
High-speed precision machining: constant power output above 4000RPM, stable speed, to ensure smooth finish.
Strong applicability: It can be used with many upper computer (CNC system, PLC, etc.) at home and abroad.
Powerful secondary development: Special functions can be customized according to customer requirements.
