SZGH-11120BC 1200W Servo Motor
Overview: SZGH-11120BC 1200w servo motor, this model is a very popular product, the best match with our AC servo driver actual size optimal servo performance
Classification:
Product Description
|
Rated power (W): |
1200 |
|
Rated line voltage (V): |
220 |
|
Rated line current (A): |
4.5 |
|

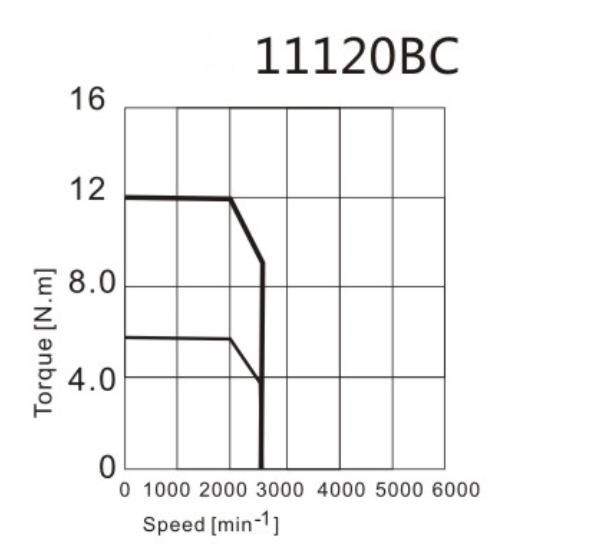

Rated speed (rpm): |
2000 |
|
Rated torque (N.m): |
6 |
|
Peak moment (N.m): |
12 |
|
BEMF (V/1000r/min): |
83 |
|
Moment coefficient (N.m/A): |
1.3 |
|
Rotor inertia (kg.m2x10-3): |
0.76 |
|
Winding (line-to-line) resistance (Ω): |
1.46 |
|
Winding (line-to-line) inductance (mH): |
4.7 |
|
Electrical time constant (Ms): |
3.2 |
|
Weight (kg): |
7.9 |
|
Number of encoder lines (PPR): |
2500 |
|
Motor insulation class: |
Class F |
|
Degree of protection: |
IP65 |
|
Use environment: |
|
|
Ambient temperature: |
0 °c ~ 40 °c |
|
Ambient humidity: |
< 90% RH |
