3.7KW AC Spindle Servo Motor
Category
Spindle Servo Motor
3.7KW AC Spindle Servo Motor
Product description
▶ Features:
CW&CCW: Speed Error +/- 1RPM , Acceleration/Deceleration time of 3000RPM : 1second;
Independent Quasi Stop: Positioning with High Precision(0.03。);
Rigid Tapping: Max speed of tapping is 3000RPM ,Min of dental work is M3 ;
Function of C-Axis: Indexing Accuracy: +/-1 Pulse ; Turning/Milling: 0.01rpm;
Cutting in Low Speed: Overload(3 times holding torque),ensure stablity of cutting,applied in casting process;
High-Speed Precision Machining: Constant power output over 4000RPM,stable ratoting speed,ensure finish;
Strong Applicability: Match for CNC System , PLC etc.
Powerful Development : Custome Manufacturing.

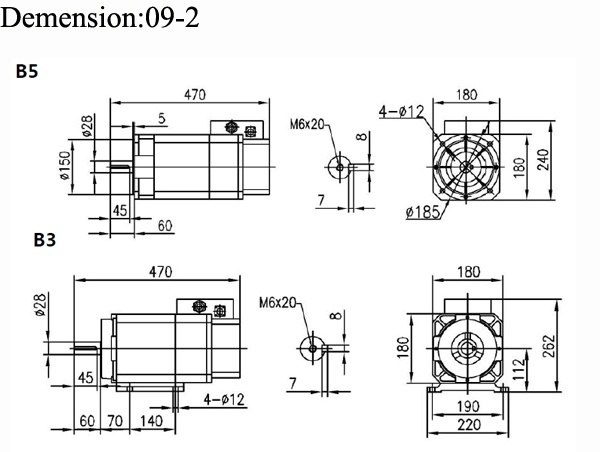

Dimension of Spindle Servo Motor can be customized.
Application: CNC Lathe Machine,CNC Milling Machine,CNC Machine Center,CNC Grinding Machine & Other Speical Machine.
Previous
SZGH08-5-19-3.0/3.7-4-1500JXB5
-
